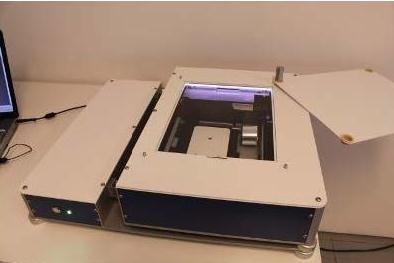

SAMPLE TYPE:
SOLID MATERIALS / TEXTURE AND HOLE
CHARACTERISTIC ANALYSIS
DRY 2 microns to 20 cm
SAMPLE TRANSPORT METHOD:
MANUAL PLACEMENT
ANALYSIS PARAMETERS:
VERY FINE POWDERS
400 nm to 2 mm

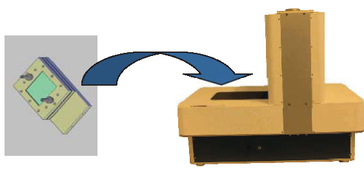

NEW! NANO 500 XY
WITH REMOVEABLE FLOWCELL FOR LIQUIDS
MAGNETIC STIRRER KEEPS PARTICLES IN SUSPENSION
MEMBRANE PUMP / PERILSTATIC PUMP
Flow Cell SERIES FOR LIQUIDS AND SLURRIES
Zephyr SERIES LOW TO HIGH THROUGHPUT GRANULAR POWDER ANALYZERS
Nano 500 SERIES FINE POWDER ANALYZERS (PATENTED VACUUM DISPERSION SYSTEM)
ZEPHYR ZEPHYR ESR ZEPHYR LDA
500 NANO 500 NANOP 500 NANOXY
FC200M / P FC200S / HR FC200S IPAC
FULLY AUTOMATED
FOR PHARMACEUTICAL
APPLICATIONS
CAN TEST BELOW 1 mg.
CALLISTO PHARMA SOFTWARE
IS 21 CFR PART 11 COMPLIANT
ANALYSIS PARAMETERS:
PARTICLES SUSPENDED IN LIQUID, AND SENSITIVE TO BREAKAGE
ANALYSIS DETECTION 800 nm to 1 mm
DISPERSION: MEMBRANE OR PERILSTATIC PUMP WITH CLEANABLE FLOWCELL
MINIMUM SPACER DEPTH 50 MICRONS
ANALYSIS PARAMETERS
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
ANALYSIS DETECTION 200 nm to 1 mm
DISPERSION : PRECISION SYRINGE PUMP WITH CLEANABLE FLOWCELL
MINIMUM SPACER DEPTH 50 :
ANALYSIS PARAMETERS:
PARTICLES SUSPENDED IN LIQUID
FOR SMALLER PARTICLES
WET 200 nm to 1 mm
ADAPTED FOR PROTEIN AGGREGATE COUNTING AND ANALYSIS
ANALYSIS PARAMETERS:
DRY 20 microns to 5 mm
DISPERSION:
VIBRATING HOPPER
VACUUM DISPERSION
THROUGH LAMINAR TUBE.
ANALYSIS PARAMETERS
DRY 30 micron to 30 mm
WET 30 micron to 1 mm
DISPERSION:
DRY-VIBRATING HOPPER / GRAVITY
VACUUM ASSIST
LIQUID- FLOWCELL
ANALYSIS PARAMETERS
DRY 7 micron to 30 mm
WET 1 micron to 1 mm
DISPERSION:
DRY-VIBRATING HOPPER / AIR JET /
VACUUM ASSIST
LIQUID- FLOWCELL
FREE FLOWING POWDERS GRANULARS / BULK MATERIALS DIFFICULT POWDERS
THREE DIFFERENT MODELS FOR LOW VOLUME PRECISION POWDER ANALYSIS
SAMPLE SPECIFIC DISPERSION AND OPTICS SYSTEMS FOR PRECISE PARTICLE ANALYSIS
HIGH THROUGHPUT DYNAMIC ANALYSIS / LOW THROUGHPUT DYNAMIC AND STATIC ANALYSIS
SPECIAL EQUIPMENT & APPLICATIONS
4-S INSTRUMENTS
LABORATORY TEST

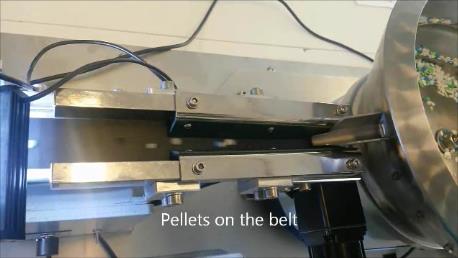

SAMPLE TYPE: DRY GRANULARS
CHARACTERISTIC ANALYSIS
DRY 500 microns to 10,000 microns
SAMPLE TRANSPORT METHOD:
ROTATING DISPERSER & LINEAR CONVEYOR BELT
SAMPLE TYPE:
PARTICLES SUSPENDED IN LIQUID
FOR LARGER PARTICLES
WET 200 NM TO 10 CM
ANALYSIS PARAMETERS:
VERY FINE POWDERS 400 nm to 3 mm
WET 400 nm to 1 mm
VIDEO
ANALYSIS PARAMETERS:
VERY FINE POWDERS
400 nm to 2 mm
SAMPLE TYPE:
LIQUIDS IN CONTAINERS
DRY 2 microns to 20 cm
SAMPLE TRANSPORT METHOD:
MANUAL PLACEMENT
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
DIGITAL IMAGING EQUIPMENT FOR PARTICLE CHARACTERIZATION IN LIQUIDS, POWDERS, AND
INSTALLATIONS WORLDWIDE
OCCHIO DIGITAL IMAGE ANALYZERS HAVE THE ABILITY TO DETECT AND QUANTIFY BOTH PARTICLE SIZE AND PARTICLE SHAPE, PAVING THE WAY FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.
CORRELATIONS TO OTHER PARTICLE SIZE ANALYSIS METHODS, LIKE SIEVE ANALYSIS AND LASER DIFFRACTION, ARE SEAMLESSLY EMPLOYED. EVEN SHAPE PARAMETERS LIKE LENGTH, FLATNESS, AND ANGULARITY IN AGGREGATES, OR THE LENGTH OF STRINGY PARTICLES LIKE SHREDDED CHEESE, OR TOBACCO, ARE POSSIBLE.
ONCE A BASIC CORRELATION HAS BEEN ESTABLISHED, THE RESULTS ARE FINE TUNED WITH THE OCCHIO CORRELATION PROGRAM, ALLOWING FOR TURNKEY SOLUTIONS TO PARTICLE CHARACTERIZATION.
DIGITAL PARTICLE
CHARACTERIZATION THEORY
EFFECTS OF DIGITIZATION
ON PARTICLE CHARACTERIZATION
AVAILABLE SIZE AND
SHAPE PARAMETERS
