PARTICLE SIZE PARAMETERS: 500 μm – 10000 μm
STANDARD CAMERA RESOLUTION: 6.6 MILLION PIXELS
PIXEL SIZE: 3.5 MICRONS
HIGH RESOLUTION CAMERA:1.3 M pixels
PIXEL SIZE: 1.67 MICRONS

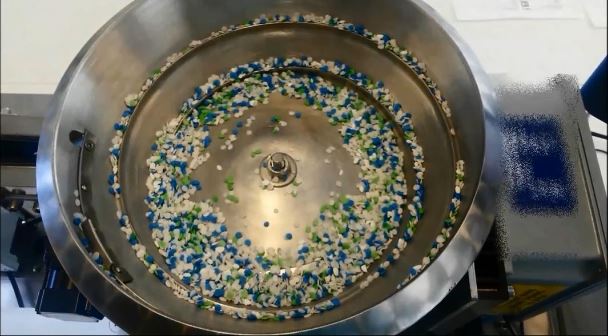

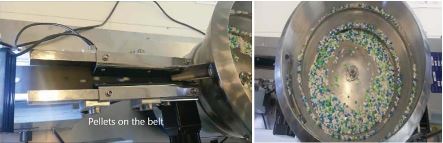

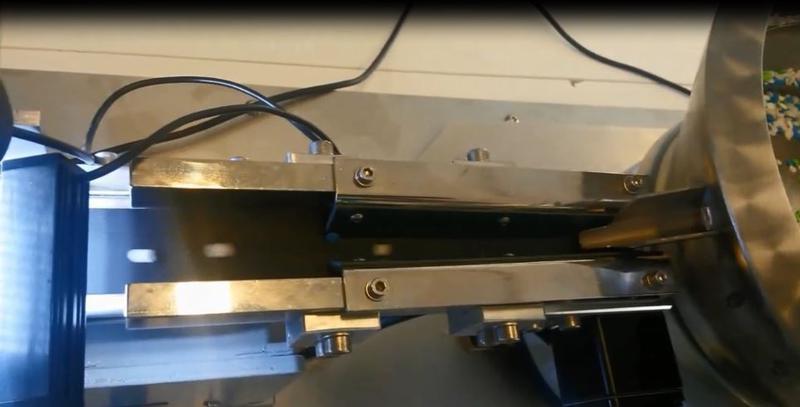

The Occhio Morph 3-D utilizes a moving conveyor belt, and special hopper for dispersion. For particles as small as .5 mm, 3 dimensional particle size and shape analysis is possible.

Two cameras are used to achieve 3 Dimensional Image Capture
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
804-318-3686 | [email protected]
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
THIS  NEW DEVICE ALLOWS MEASURING PARTICLE SIZE, MORPHOLOGY, AND COLOR IN THREE DIMENSIONS.
TWO CAMERAS ARE USED TO TAKE PICTURES TO ANALYZE MAXIMUM DIAMETER AND THICKNESS OF PARTICLES.
OCCHIO MORPHO 3D
Email Address
First Name
Company
Telephone
Last Name
INFORMATION REQUEST
Notes
DRY ANALYSIS - PARTICLE SIZE 500 μm – 10000 μm
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
866-244-1578 | [email protected]
www.occhio-usa.com
BROCHURE AND DATA SHEET
DIGITAL IMAGING EQUIPMENT FOR PARTICLE CHARACTERIZATION IN LIQUIDS, POWDERS, AND SOLIDS
HOMECONTACT USPRODUCTS

OCCHIO DIGITAL IMAGE ANALYZERS HAVE THE ABILITY TO DETECT AND QUANTIFY BOTH PARTICLE SIZE AND PARTICLE SHAPE, PAVING THE WAY FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.

CORRELATIONS TO OTHER PARTICLE SIZE ANALYSIS METHODS, LIKE SIEVE ANALYSIS AND LASER DIFFRACTION, ARE SEAMLESSLY EMPLOYED. EVEN SHAPE PARAMETERS LIKE LENGTH, FLATNESS, AND ANGULARITY IN AGGREGATES, OR THE LENGTH OF STRINGY PARTICLES LIKE SHREDDED CHEESE, OR TOBACCO, ARE POSSIBLE.

ONCE A BASIC CORRELATION HAS BEEN ESTABLISHED, THE RESULTS ARE FINE TUNED WITH THE OCCHIO CORRELATION PROGRAM, ALLOWING FOR TURNKEY SOLUTIONS TO PARTICLE CHARACTERIZATION.
500 NANO SERIES500 NANO500 NANO PHARMA500 NANO XYCOFFEEE-TRAKFLOWCELL SERIES
FC200 IPACFC200MFC200SCMPSLURRYFC200SHRMORPHO 3-DPHARMA SCANNER
SIEVECALZEPHYR SERIESZEPHYR ESRZEPHYR LDAZEPHYR LDA COFFEE-TRAK

DIGITAL IMAGE ANALYZERS
DOWNLOADS
DIGITAL  PARTICLE
CHARACTERIZATION THEORY
EFFECTS OF DIGITIZATION
ON PARTICLE CHARACTERIZATION
AVAILABLE SIZE AND
SHAPE PARAMETERS
CLICK IMAGE FOR DEMONSTRATION
MORPHO 3D AUTOMATIC PARTICLE CHARACTERISTIC ANALYZER FOR DRY PARTICLES. THIS ANALYSIS ALLOWS FOR SIZE, MORPHOLOGY AND COLOR.
SAMPLE
CHARACTERISTICS

DISPERSION METHODS DESIGNED TO MAINTAIN PARTICLE INTEGRITY
GRANULAR MATERIALS,
POWDERS, LIQUIDS

MORPHO 3D

DRY GRANULAR MATERIALS
SIZE RANGE 500 µm – 10,000 µm
EXAMPLES TABLETS, SEEDS, BEADS
3 DIMENSIONAL ANALYSIS
DISPERSION METHOD
FEEDING HOPPER & CONVEYOR BELT
ZEPHYR LDA

DRY POWDERS & GRANULARS
THAT TRAVEL WELL IN FLIGHT
7 µm – 5,000 µm
EXAMPLES SUGAR / COFFEE / SAND
DISPERSION METHOD
VIBRATING HOPPER WITH
HORIZONTAL VACUUM DISPERSION
 (FASTER ANALYSIS TIME)

LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID
1 µm – 3,000 µm
ZEPHYR ESR2

DRY GRANULARS HEAVIER PARTICLES
30 µm – 30,000 µm
GRAVEL, WOOD CHIPS, SAND
COFFEE BEANS & GRINDS
DISPERSION METHOD
VIBRATING HOPPER WITH
VERTICAL DISPERSION
(VACUUM ASSIST FOR)

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
30 µm – 1,000 µm
500 NANO

FINE POWDERS
DRY 0.2 µm – 2,000 µm
PHARMACEUTICALS, CHEMICALS
STATIC ANALYSIS
DISPERSION METHOD
PATENTED VACUUM IMPLOSION

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
.8 µm – 300 µm
DEDICATED LIQUID ANALYSIS
PARTICLES SUSPENDED IN LIQUID

FC200M

​PARTICLES SUSPENDED IN LIQUID
0.8 µm-800 µm
DISPERSION METHOD
MEMBRANE PUMP (FOR PARTICLES
SUBJECT TO BREAKAGE)
PERILSTATIC PUMP (>500 µm)
FC200S EMULSIONS

PARTICLES SUSPENDED IN LIQUID
0.2 µm / 0.4 µm -1,000 µm
PROTEIN AGGREGATES
DISPERSION METHOD
SYRINGE PUMP
FC200S CMP SLURRY

PARTICLES SUSPENDED IN LIQUID
SLURRIES
0.2 µm- 500 µm
DISPERSION METHOD
SYRINGE PUMP
SPECIAL DEDICATED
APPLICATIONS
SIEVECAL

LABORATORY TEST SIEVE CALIBRATOR
CALIBRATE TEST SIEVES IN HOUSE.
2 MINUTES PER SIEVE.FULL INSPECTION / COMPLIANCE REPORT
OCCHIOSCAN

PARTICLES IN LIQUIDS IN SITU
ANALYZE FIBERS, TEXTURES, AND PARTICLES INSIDE CONTAINERS
