OCCHIO ZEPHYR ESR2 HEAVY DUTY PARTICLE CHARACTERIZATION SYSTEM
MEDIUM TO LARGE SAMPLES FOR GRANULAR AND BULK MATERIALS (LIQUID ACCESSORY OPTION AVAILABLE)
Occhio particle size and shape analyzers, are the collaboration of many years of focused research in the fields of optics, lighting, and digital imaging.

Common methods of particle size distribution analysis include laser diffraction, and sieve analysis, both of which are based on the assumption that the sample is comprised of spherical particles.

While these methods of gathering size distribution information generally provide usable results, they lack in accuracy, and application when compared with digital imaging technology, especially when particles are not round.

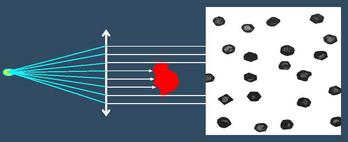

Fig 1.1 A monochromatic, collimated back-light acts like a caliper.
OCCHIO ZEPHYR ESR GRANULAR MORPHOMETER
SAMPLE TYPE: FREE FLOWING GRANULARSAND BULK MATERIALS                                  THAT DISPERSE NATURALLY WITH GRAVITY
                          (LIQUID ANALYSIS ACCESSORY AVAILABLE)
DRY 30 micron to 30 mm
WET 30 micron to 1 mm
OCCHIO ZEPHYR ESR2 BROCHURE
BY USING A  PARAMETER CALLED MAXIMUM INSCRIBED DISC, NEAR PERFECT SIEVE CORRELATION IS NOW POSSIBLE, SINCE THIS EFFECTIVELY MEASURES THE WIDEST PART OF A PARTICLE, WHICH CONSEQUENTLY DETERMINES THE SIEVE APERTURE SIZE THE PARTICLE WOULD OR WOULD NOT FALL THROUGH. BECAUSE WE CANNOT TELL WHETHER A PARTICLE FALLS THROUGH A SIEVE APERTURE SQUARELY OR ON ITS' DIAGONAL, THERE WILL BE SOME VARIANCE.
​FOR BETTER CORRELATION TO A PARTICLES ACTUAL MASS, A PARAMETER CALLED EQUIVALENT DISC DIAMETER IS EMPLOYED. THIS BASICALLY EQUATES TO COUNTING PIXELS, AND CORRELATES MORE CLOSELY TO LASER DIFFRACTION RESULTS.
INSCRIBED CIRCLES ARE USEFUL IN DETERMINING OTHER IMPORTANT CHARACTERISTICS, SUCH AS ABRASIVE PROPERTIES OF PARTICLES
THIS ACTUAL IMAGE OF AN ESPRESSO COFFEE GRIND, HELPS SHOW
HOW SIEVING MAY PROVIDE FALSE INFORMATION IN REGARDS TO SIZE.

WHAT SIZE SQUARE APERTURE WOULD LIKELY CAPTURE THE PARTICLE.? EVEN MORE SO, WOULD IT FALL THROUGH ON THE PERPENDICULAR OR THE HORIZONTAL?
Recent studies have shown that laser diffraction results may skew towards the smaller end.

Also compared with direct measurements, laser diffraction results for plates can be 31% off, and rods up to 70% wrong.
Using a special proprietary light source, Occhio Particle Analyzers, are able to provide clear resolution, and definition to particles as small as 200 nanometers.
WHAT ABOUT SIEVE CORRELATION WITH NON SPHERICAL PARTICLES?
WHAT ABOUT CORRELATION TO LASER DIFFRACTION?
AVAILABLE MEASUREMENT PARAMETERS

OCCHIO DIGITAL IMAGING THEORY
VIBRATING HOPPER / GRAVITY
DISPERSION (LIQUID FLOWCELL
OPTION ALSO AVAILABLE)
SAMPLE TRANSPORT METHOD
