THE FC200M IS PART OF A FAMILY OF HIGHLY SOPHISTICATED DIGITAL IMAGING SYSTEMS, THAT ARE BY PRODUCTS FROM A SERIES OF COLLABORATIVE STUDIES IN LIGHT, OPTICS, AND SAMPLE TRANSPORT, CARRIED OUT WITH THE COOPERATION OF THE UNIVERSITY DE LIEGE IN BELGIUM.
NEW HIGH RESOLUTION IMAGING TECHNOLOGY
This high resolution imaging technology, is accomplished in part, by using special backlighting techniques focused from behind the sample. An adjustable range, monochromatic, blue light source has been shown to provide optimal contrast conditions for the particles, and virtually eliminate diffraction. The light is collimated, and acts as a high definition caliper. In the case of liquids and suspensions, the light flashes simultaneously with a high speed, high definition camera, for extremely robust particle definitions.
OCCHIO FC200M PARTICLE CHARACTERISTIC ANALYZER FOR PARTICLES SUSPENDED IN LIQUID
MONOCHROMATIC COLLIMATED BACKLIGHT ACTS LIKE A CALIPER, AND PROVIDES RESOLUTION UNATTAINABLE WITH WHITE LIGHT OR LASER DIFFRACTION
TELECENTRIC LENS- IMAGE MAGNIFICATION IS INDEPENDENT OF THE OBJECTS DISTANCE OR POSITION IN THE FIELD OF VIEW

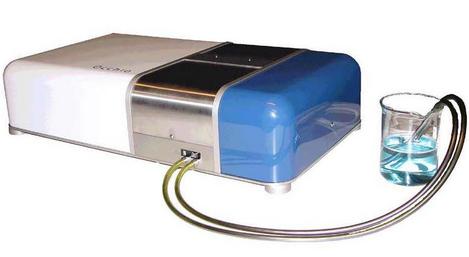

FC200M AUTOMATIC PARTICLE CHARACTERISTIC ANALYZER DEDICATED TO ANALYZING PARTICLES IN SUSPENSIONS.

A SPECIAL MEMBRANE PUMP CAPABLE OF TRANSPORTING 0-2,000 ml PER MINUTE, IS USED FOR APPLICATIONS WHERE PARTICLE BREAKAGE IS A CONCERN.

PARTICLE SIZE PARAMETERS: 8 nm to 1 mm
STANDARD CAMERA RESOLUTION: 6.6 MILLION PIXELS
PIXEL SIZE: 3.5 MICRONS
HIGH RESOLUTION CAMERA:10 MILLION PIXELS
PIXEL SIZE: 1.67 MICRONS
THIS EASILY MAINTAINED PARALLEL SLIDE FLOWCELL, CAN BE ADJUSTED FROM 50 MICRONS TO 1 MILLIMETER, WITH SPECIAL SPACERS, TO ALLOW FOR THE ACCURATE ANALYSIS OF MATERIALS DOWN TO 200 nm IN SIZE, SUCH AS PROTEIN AGGREGATES.

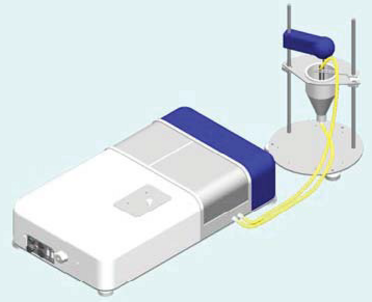

OVERHEAD STIRRER AND
STAINLESS CONICAL BEAKER
OPTION KEEPS PARTICLES
IN SUSPENSION DURING ANALYSIS FOR MEMBRANE AND PERILSTATIC PUMP EQUIPPED MODELS
THE EASY TO USE CALLISTO SOFTWARE ALLOWS FOR ROBUST PARTICLE CHARACTERIZATION WITH THE CLICK OF A MOUSE, INCLUDING SEVERAL NEWLY DEFINED SHAPE PARAMETERS.

FC200M (MEMBRANE PUMP BROCHURE
FC200M HIGH RESOLUTION  MODEL DATA SHEET
NEW ADVANCES IN HIGH RESOLUTION IMAGING!
FC 200M (MEMBRANE OR PERILSTATIC PUMP MODEL)
THE SAMPLE IS DRAWN BY A PURPOSE SPECIFIC PUMP.

MEMBRANE PUMP-WHERE SAMPLE BREAKAGE IS A CONCERN
PERILSTATIC PUMP-PARTICLES OVER 500 MICRONS IN SIZE
CALLISTO SOFTWARE FROM OCCHIO
CLICK FOR DEMONSTRATION
FLOWCELL CLEANING PROCEDURE
Email Address
First Name
Company
Telephone
Last Name
INFORMATION REQUEST
Notes
Copyright 2012: QAQC Lab | Particle Measurement System | All rights reserved.
866-244-1578 | [email protected]
www.occhio-usa.com
BUY PARTS AND ACCESSORIES
DIGITAL IMAGING EQUIPMENT FOR PARTICLE CHARACTERIZATION IN LIQUIDS, POWDERS, AND
                                 INSTALLATIONS WORLDWIDE
HOMECONTACT USPRODUCTS

OCCHIO DIGITAL IMAGE ANALYZERS HAVE THE ABILITY TO DETECT AND QUANTIFY BOTH PARTICLE SIZE AND PARTICLE SHAPE, PAVING THE WAY FOR THE ADVANCED ANALYSIS OF PARTICLES IN BOTH LIQUID AND SOLID FORMS.

CORRELATIONS TO OTHER PARTICLE SIZE ANALYSIS METHODS, LIKE SIEVE ANALYSIS AND LASER DIFFRACTION, ARE SEAMLESSLY EMPLOYED. EVEN SHAPE PARAMETERS LIKE LENGTH, FLATNESS, AND ANGULARITY IN AGGREGATES, OR THE LENGTH OF STRINGY PARTICLES LIKE SHREDDED CHEESE, OR TOBACCO, ARE POSSIBLE.

ONCE A BASIC CORRELATION HAS BEEN ESTABLISHED, THE RESULTS ARE FINE TUNED WITH THE OCCHIO CORRELATION PROGRAM, ALLOWING FOR TURNKEY SOLUTIONS TO PARTICLE CHARACTERIZATION.
500 NANO SERIES500 NANO500 NANO PHARMA500 NANO XYCOFFEEE-TRAKFLOWCELL SERIES
FC200 IPACFC200MFC200SCMPSLURRYFC200SHRMORPHO 3-DPHARMA SCANNER
SIEVECALZEPHYR SERIESZEPHYR ESRZEPHYR LDAZEPHYR LDA COFFEE-TRAK

DIGITAL IMAGE ANALYZERS
DOWNLOADS
DIGITAL  PARTICLE
CHARACTERIZATION THEORY
EFFECTS OF DIGITIZATION
ON PARTICLE CHARACTERIZATION
AVAILABLE SIZE AND
SHAPE PARAMETERS
CLICK IMAGE FOR DEMONSTRATION
SAMPLE
CHARACTERISTICS

DISPERSION METHODS DESIGNED TO MAINTAIN PARTICLE INTEGRITY
GRANULAR MATERIALS,
POWDERS, LIQUIDS

MORPHO 3D

DRY GRANULAR MATERIALS
SIZE RANGE 500 µm – 10,000 µm
EXAMPLES TABLETS, SEEDS, BEADS
3 DIMENSIONAL ANALYSIS
DISPERSION METHOD
FEEDING HOPPER & CONVEYOR BELT
ZEPHYR LDA

DRY POWDERS & GRANULARS
THAT TRAVEL WELL IN FLIGHT
7 µm – 5,000 µm
EXAMPLES SUGAR / COFFEE / SAND
DISPERSION METHOD
VIBRATING HOPPER WITH
HORIZONTAL VACUUM DISPERSION
 (FASTER ANALYSIS TIME)

LIQUID ANALYSIS FLOWCELL ACCESSORY
PARTICLES SUSPENDED IN LIQUID
1 µm – 3,000 µm
ZEPHYR ESR2

DRY GRANULARS HEAVIER PARTICLES
30 µm – 30,000 µm
GRAVEL, WOOD CHIPS, SAND
COFFEE BEANS & GRINDS
DISPERSION METHOD
VIBRATING HOPPER WITH
VERTICAL DISPERSION
(VACUUM ASSIST FOR)

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
30 µm – 1,000 µm
500 NANO

FINE POWDERS
DRY 0.2 µm – 2,000 µm
PHARMACEUTICALS, CHEMICALS
STATIC ANALYSIS
DISPERSION METHOD
PATENTED VACUUM IMPLOSION

LIQUID ANALYSIS FLOWCELL
ACCESSORY
PARTICLES SUSPENDED IN LIQUID
.8 µm – 300 µm
DEDICATED LIQUID ANALYSIS
PARTICLES SUSPENDED IN LIQUID

FC200M

​PARTICLES SUSPENDED IN LIQUID
0.8 µm-800 µm
DISPERSION METHOD
MEMBRANE PUMP (FOR PARTICLES
SUBJECT TO BREAKAGE)
PERILSTATIC PUMP (>500 µm)
FC200S EMULSIONS

PARTICLES SUSPENDED IN LIQUID
0.2 µm / 0.4 µm -1,000 µm
PROTEIN AGGREGATES
DISPERSION METHOD
SYRINGE PUMP
FC200S CMP SLURRY

PARTICLES SUSPENDED IN LIQUID
SLURRIES
0.2 µm- 500 µm
DISPERSION METHOD
SYRINGE PUMP
SPECIAL DEDICATED
APPLICATIONS
SIEVECAL

LABORATORY TEST SIEVE CALIBRATOR
CALIBRATE TEST SIEVES IN HOUSE.
2 MINUTES PER SIEVE.FULL INSPECTION / COMPLIANCE REPORT
OCCHIOSCAN

PARTICLES IN LIQUIDS IN SITU
ANALYZE FIBERS, TEXTURES, AND PARTICLES INSIDE CONTAINERS
